How to write After Effects expressions in TypeScript

Tim Haywood

|

August 13, 2020

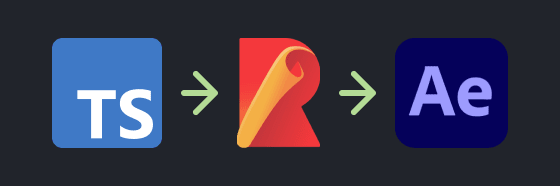

In this article we'll go over how to write expressions libraries, (.jsx) files, in TypeScript, with automatic refresh, using Rollup.js.

This means you can write expressions with the full benefits of:

• Bundling from multiple files at build time
• Type checking

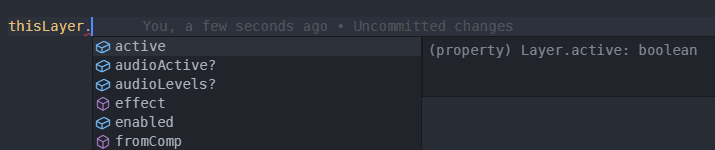

• Auto-completion

• Testing

js
// src/index.test.ts
import { welcome } from "./index";
test("returns correct welcome string", () => {
  expect(welcome("test")).toEqual("Welcome test!");
});

All while working in working in VS Code, that will re-compile and update in After Effects on save.

You can also watch our tutorial on the topic below:

Quick setup

• Create a new project using create-expression-lib

bash
npx create-expression-lib project-name --install

And then navigate into the project folder via:

bash
cd project-name

• Edit the /src files

Any code exported from src/index.ts file will be output to dist/index.jsx as a After Effects compatible .jsx file.

• Run rollup in watch mode

bash
npm run watch

This will re-compile your files into After Effects compatible .jsx files every time you save.

• Import the file into After Effects

You can then import the output .jsx file into After Effects, and use it in your expressions, for example.

js
const libraryCode = footage("index.jsx").sourceData;
libraryCode.someFunction();

After Effects will reload the .jsx file when it's recompiled, so you'll see the result of your code every time you save your source file.

Using the After Effects API

Since you're writing expressions outside of After Effects, native attributes and native methods such as thisComp, linear() and wiggle() aren't defined when you're writing the code.

This package mocks the After Effects API in TypeScript, so you can write expressions outside of an After Effects environment.

Classes

To create layers, compositions and properties, you can use the classes exported from the library. For example:

ts
import { Comp, Layer } from "expression-globals-typescript";
const thisComp = new Comp();
const thisLayer = new Layer();

To create properties (such as position or scale), you can use the Property class.

ts
import { Property, Vector } from "expression-globals-typescript";
const thisProperty = new Property<Vector>([0, 100]);

The Property constructor takes a value to set as the property value, and a type (<>) to set as the type for the property.

After Effects Types

You can import After Effect's specific types such as Color and Vector from the package to properly type your expressions.

typescript
import { Color, Vector } from "expression-globals-typescript";
const textColor: Color = [1, 1, 1, 1];
const textPosition: Vector = [950, 540];

How it works

• expression-globals-typescript allows you to use the Expressions API outside of After Effects
• Rollup.js watches the source files, bundles them into one, and runs the TypeScript compiler as well as:
• rollup-plugin-ae-jsx Transforms the output code into After Effects compatible JSON (.jsx) files

Creating releases

To distribute the output (.jsx) file via GitHub releases, you can run the release command:

bash
npm run release

This will create a new release on GitHub using the GitHub CLI, attaching the output dist file to the release.

There's two settings in your package.json that affect the release:

• The release version comes from the "version"
• You can set which file to attach to the release in the release script, which is dist/index.jsx by default

Testing

Expressions Library Template comes configured with Jest and ts-jest. This enables you to write tests for your expressions that will run on each save, giving you confidence that any code changes haven't broken your expression library.

You can write tests in the src/index.test.ts file, importing the code you want to test from index.ts. For example:

js
// src/index.test.ts
import { welcome } from "./index";
test("returns correct welcome string", () => {
  expect(welcome("test")).toEqual("Welcome test!");
});

And then run the test suite in watch mode via the command:

bash
npm run test

Splitting expressions across files

To split your expression into multiple files, all you need to do is:

• Export from one file

typescript
// anotherFile.ts
const someVariable: string = "this is in another file";
export { someVariable };

• Import and export from the index file

typescript
// index.ts
import { someVariable } from "./anotherFile";
const localVariable: number = 2;
export { someVariable, localVariable };

They will then be bundled into the output file at build time.
